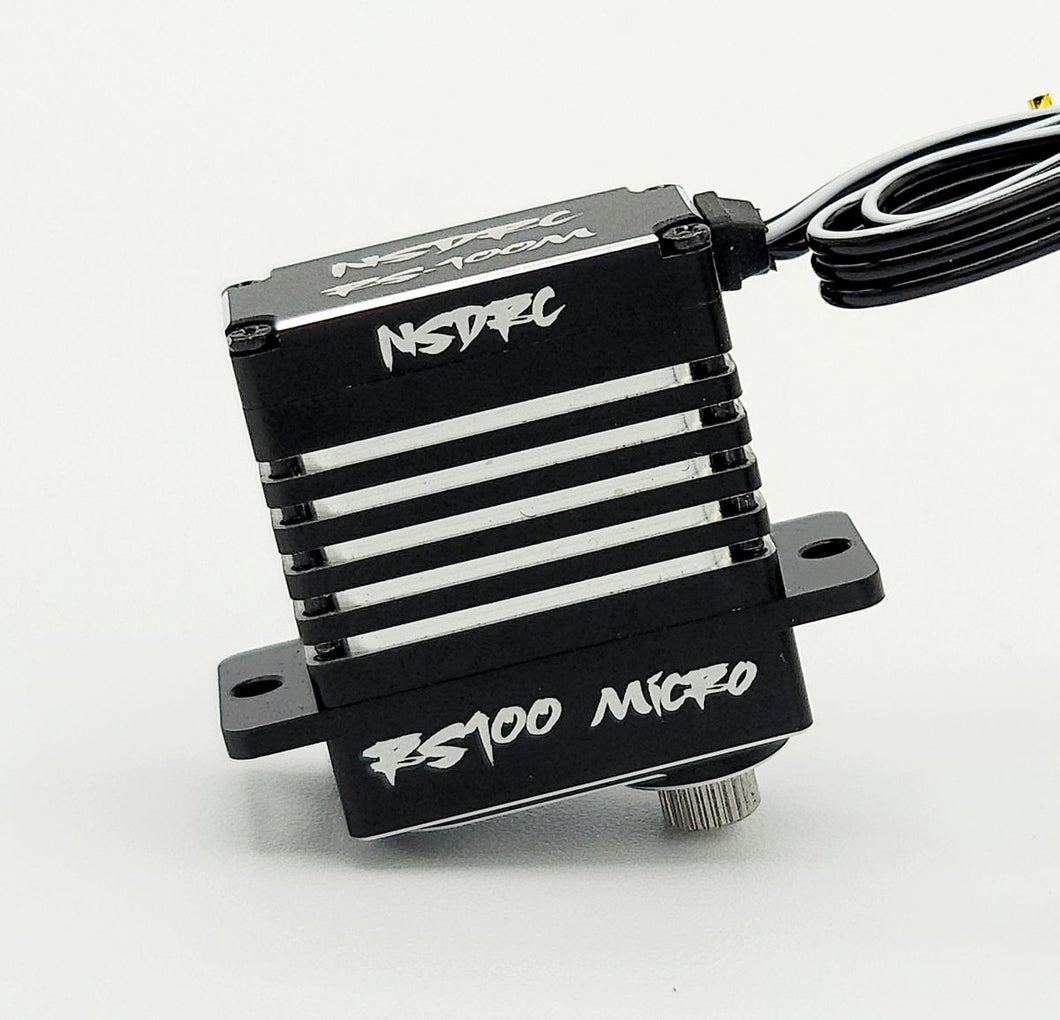

NSDRC RS100 Micro Servo

NSDRC RS100 Micro Servo

Regular price
Sold out
Sale price
Shipping calculated at checkout.

RS100M High Torque High Speed Micro Servo


Quality Coreless Motor

Full Cnc Aluminum Case

Hardened Steel Gears

Spline: 25T 4.9mm Micro

Voltage: 5v-8.4v

Bearing: 2BB

Wire Length: 185mm

Weight: .70 oz / 20 Grams

Dimensions: 23 x 12 x 26mm

Splashproof/ Water Resistant, NOT Submersible!

Torque:  90oz @ 5v

              100oz @ 6v

              115oz @ 7.4v

              130oz @ 8.4v


Speed:  .10 @ 5v

              .08 @ 6v

              .07 @ 7.4v

              .06 @ 8.4v


*These do not fit in the stock servo mounts, we recommend using the Mofo RC mounts or similar.

*Our Micro Bec is recommend for the Micro servos being used in 1/24 and 1/18 Micro rc. Stock Micro rc electronics are typically pretty weak and need a boost when running high power, for this we recommend using our Micro Bec's.


Warranty: 6 month warranty from all defects. We assume no liability of damage caused from excessive bashing, abuse, mistreatment, water, or use other than recommended. 8.4v Max, Nothing is unbreakable. For all issues you will need to ship the servo back to us to be inspected for warranty.
