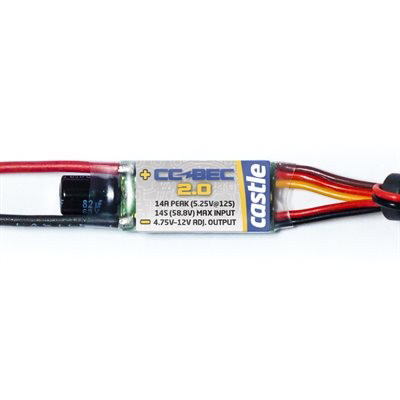

Castle Creations BEC2.0 battery eliminator circuit.
The Castle Creations BEC 2.0 has two outputs: signal/power/ground for a servo or winch and power/ground for an accessory.
Output voltage is programmable using a Castle Link USB Programming Kit.
BEC 2.0 Specifications:
- 14A peak current
- 4.75-7.0V output: 9A continuous
- 7.25V-8.5V output: 8A continuous
- 8.75V-10.0V output: 7A continuous
- 10.25-12.0V output: 6A continuous
- 12S LiPo maximum voltage
- 5.25V default output voltage
- 4.75 to 12V adjustable output voltage
- 1.69" (43mm) length
- 0.56" (14mm) width
- 0.32" (8mm) height
