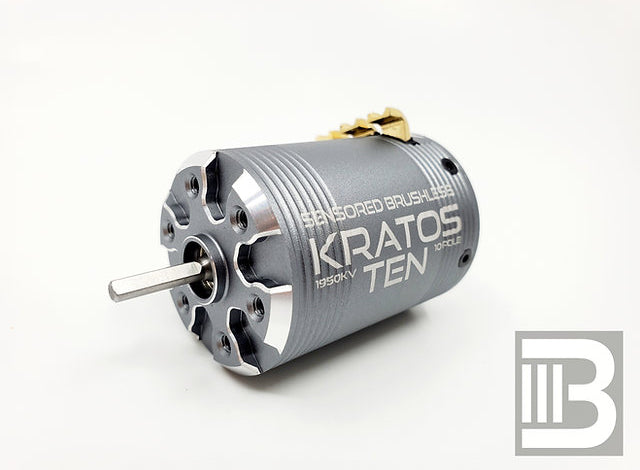

Brushless sensored crawler motor.
Our new KRATOS TEN 10-pole
sensored brushless motors deliverunmatched control that competes
with the best of the brushed
motors but provides the
reliability of brushless power.
The result? The fastest-slowest motors money can buy. We are proud to have the
first 10-pole inrunners ever produced in the market!These powerhouses offer the best of the best in low speed control and power. The 2750kv is rated from 2s-4s.
ESC Type: Castle Mamba X,
Monster X,Micro X,and Copperhead.
Optional wiring kit not included.Features:
* 540-sized sensored brushless
motor
* 10-pole kevlar wrapped rotor
* High-grade neodymium magnets
for optimum power and efficiency
* 12-slot stator
* New phase-magnet isolation
design
* 3.175 pinion shaft
* Gold-plated solder tabs, for
low resistance/protection against corrosion
* Billet CNC one-piece shell with end cap for durability and improved
cooling.
* Waterproof
Technical Specifications:
* RPM(kv): 2750
* Construction: 12s/10p
* No-load current@7.4v: 2.5A
* Operation Voltage: 7.4v-16.8v
* Max current: 120A
* Max efficiency: 91%
* Max working temp: 302f
* Dimensions: L52.5 x D35.5
* Weight: 165g
* Pinion shaft: L15 x D3.175 Wiring kit is not included
